Custom Coil Winding Assemblies for the Electrical Industry

(Click on thumbnail to enlarge)

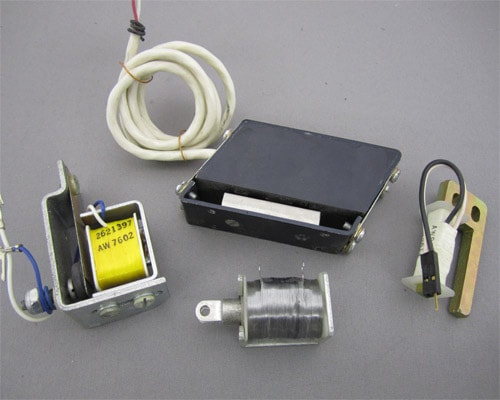

For over 70 years, Endicott Coil Company, Inc. has been at the forefront of technology in the design and production of coil winding assemblies. Our coil assemblies are used in solenoids, actuators, vibrators, PC board assemblies, and electronic assemblies. We have integrated our in-house custom tooling and insulating techniques manufacturing ability with the latest technology in CNC winding to produce high quality coil assemblies that serve a wide range of industries.

Dimensional tolerances on our assemblies are as tight as ±.005″ (1/64″ for fractional dimensions) and ±1/2° for angular dimensions. We utilize direct current resistance testing, dimensional inspection, actuation, and functional testing to ensure that all UL, CSA, VDE, and customer specifications are met. A wide range of configurations and sizes of assemblies are available to meet our customers’ needs. Please see the table below for details about our coil assemblies, or contact Endicott Coil directly for more information about our products and capabilities.

Request Quote

Interested in examples of our work?

Check out our portfolio gallery for a few samples.

View Portfolio Gallery

Highlights of our Custom Coil Winding Capabilities

Product Description

These coil assemblies are used in solenoids, actuators, vibrators, pc board assemblies, and electronic assemblies.

Custom Coil Winding Capabilities Applied/Processes
  • Winding
  • Insulating
  • Assembly
  • Staking
  • Pressing
  • Grinding
  • Fly-Cutting
  • Termination
  • Riveting
  • Ultrasonic Welding
  • Sealing
Equipment Used to Manufacture Part
  • Manual and CNC Winding Machines
  • Pneumatic Presses
  • Ultrasonic Welding
  • Arbor Press
  • In-House Custom Tooling
Overall Part Dimensions
  • Various Sizes
  • Depending on Application
Tightest Tolerances
  • Decimal: ± 0.005″
  • Fractional: ± 1/64″
  • Angular: ± 1/2°
Material Used
  • Copper Magnet Wire
  • Lead Wire
  • Brackets
  • Plungers
  • Frames
  • PC Boards
  • Electrical Components
  • Fasteners
In process testing/inspection performed
  • Direct Current Resistance Testing
  • Dimensional Inspection
  • Actuation
  • Functional Testing
Industry for Use

Electrical Industry

Standards Met
  • Customer Specifications
  • 2D CAD Drawing
  • VDE
Product Name

Coil Assemblies
