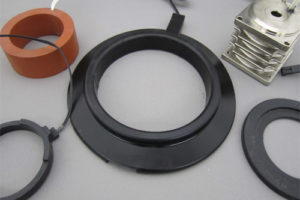

Encapsulating of Wound-Copper Coils for the Electronics Industry

(Click on thumbnail to enlarge)

Endicott Coil Company, Inc., we produce encapsulated wound copper coils for products used in the construction, automotive, transportation, and electronics industries. In addition to providing protection from harmful environments, encapsulating also offers high dielectric and isolation properties and can be a more economical option than molding, especially for low to medium volume production.

After choosing the encapsulating material based on customer specifications, we either use a pouring or pneumatic dispensing process to fill either open faced or closed potting molds, depending on the application. Curing takes place in ovens with precision temperature controls to ensure optimal performance characteristics of the encapsulant. Gage testing verifies that tolerances are held to ± 0.010″, while inductance, Hipot, and surge testing guarantee that the final products meet with customer specifications.

To learn more about how our encapsulated coils can meet the needs of your next project, contact Endicott today.

Request Quote

Interested in examples of our work?

Check out our portfolio gallery for a few samples.

View Portfolio Gallery

Highlights of this Encapsulated Wound Copper Coil Project

Product Description

These Coils are Encapsulated to Guard the Coil from Environmental Conditions. They also Offer High Dielectric & Isolation Properties.

Encapsulating Capabilities Applied/Processes


  • Design/Product Development
  • Encapsulating – Liquid Poured or Dispensed
  • In-House Tooling for Prototype and Production Molds


  • Baking
  • Post Curing
Equipment Used to Manufacture Part
  • Pneumatic Dispensing Equipment
  • Open Faced and Closed Potting Molds
  • Temperature Controlled Curing Ovens
Tightest Tolerances

± 0.010″

Material Used
  • Pedigree 300-LVFR
  • Cytek PR 1530
  • John C. Dolph: CC-1015, CB-1078, CC-1118, CB-1109
  • Hysol 4215/3561
  • Scotchcast: 2130, 253, 281
  • Emerson & Cuming: 2651, 2752
In process testing/inspection performed
  • Inductance Test
  • Shorted Turns Test
  • Hipot Test
  • Dimensional Gage Test
  • Surge Test
Industry for Use
  • Construction
  • Automotive
  • Transportation
  • Electronics

Low to Medium

Standards Met
  • Customer Specifications
  • 2D CAD Drawing
  • VDE
Product Name

Encapsulated Coils
